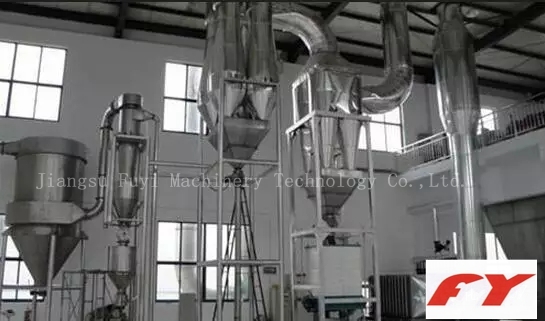

        Name: JG series airflow dryer

        Keywords: JG series airflow dryer
        Description: Summary: This machine is especially suitable for handling wet materials with a large amount of wet paste and other materials which can not be dried by other air drying methods. For example: vinyl acetate and vinyl chloride copolymer, acetate fiber wadd…

        Details

        Summary:

            This machine is especially suitable for handling wet materials with a large amount of wet paste and other materials which can not be dried by other air drying methods. For example: vinyl acetate and vinyl chloride copolymer, acetate fiber wadding, catalyst, CT-1 resin, C.M.C, calcined gypsum, electrolytic manganese dioxide, anthraquinone sulfonic acid ammonium salt, fluorite, diatomite and silica gel catalyst powder, potassium perchlorate sulfoammonium drugs, synthetic resin, surface active reinforcement, activated clay, chemical filter cake, rutile titanium dioxide, sebacic acid, copper sulfate, aluminum sulfate, sodium sulfate, calcium phosphate, phosphate starch, dye, calcium citrate, coal, clay, clay cement, aluminum hydroxide, barium hydroxide, calcium lactate, food, cyanuric acid, gypsum, lime, biological products, carbon, calcium carbonate slurry, sludge slag, organic chemicals, aluminum stearate, iron oxide, organic fuel, corn gluten feed, wet mud, mica powder, chemicals, paint, paper pulp, potassium dichromate lees etc..

        Working principle:
            Air drying from easy to dehydration of the particles, powder materials, rapid removal of moisture (mainly surface water). In air drying, the material in the dryer to dry the short residence time, the quality of the products get the best control.The airflow drying in our factory is composed of a strengthening device with stepless speed regulation on the basic type,wet material through the screw feeder into strengthening device and heat flow in the mix, and promote the rapid rotation of the hammer blade break, the materials are crushed into fine particles, in a dry and moved to the exit. Finally, the air is drawn into the drying pipe for further drying. The wet heavy particles, which cannot be drawn by the wind, continue to be crushed and dried until they are sucked in by the wind into the drying pipe.


        Technical parameter:

        Model

        Evaporation moisture (kg/h)
        (Surface moisture calculation)

        Power(kw)

        Area covered(m2)

        Heightm

        JG 50

        50

        10

        20

        JG 100

        100

        20

        32

        11

        JG 200*

        200

        31

        40

        11

        JG 250

        250

        32

        64

        13

        JG 500*

        500

        54

        96

        13

        JG 1000*

        1000

        135

        120

        15

        JG 1500*

        1500

        175

        200

        16

        The airflow dryer has the following characteristics:

        1)Large amount of processing, large drying intensity.

        2)Short drying time. The material usually stays only 0.5 to 2S in the dryer. Therefore, even if the temperature of the drying medium is higher, the temperature of the material will not rise too high. Therefore, suitable for heat sensitive, easily oxidized material drying.

        3)The utility model has the advantages of simple structure and small occupation area.The solid material forms a dilute phase conveying bed under the action of air flow, so the transportation is convenient, the operation is stable, and the quality of the finished product is even. However, the granularity of the treated materials is limited.

        4)Products wear relatively large.Because of the high gas velocity in the drying pipe, friction and collision between the particles, the particles and the wall of the material will occur. Because the material is broken, the air dryer is not suitable for easy crushing.

        5)Strict requirements for dust removal equipment, larger fluid resistance.
