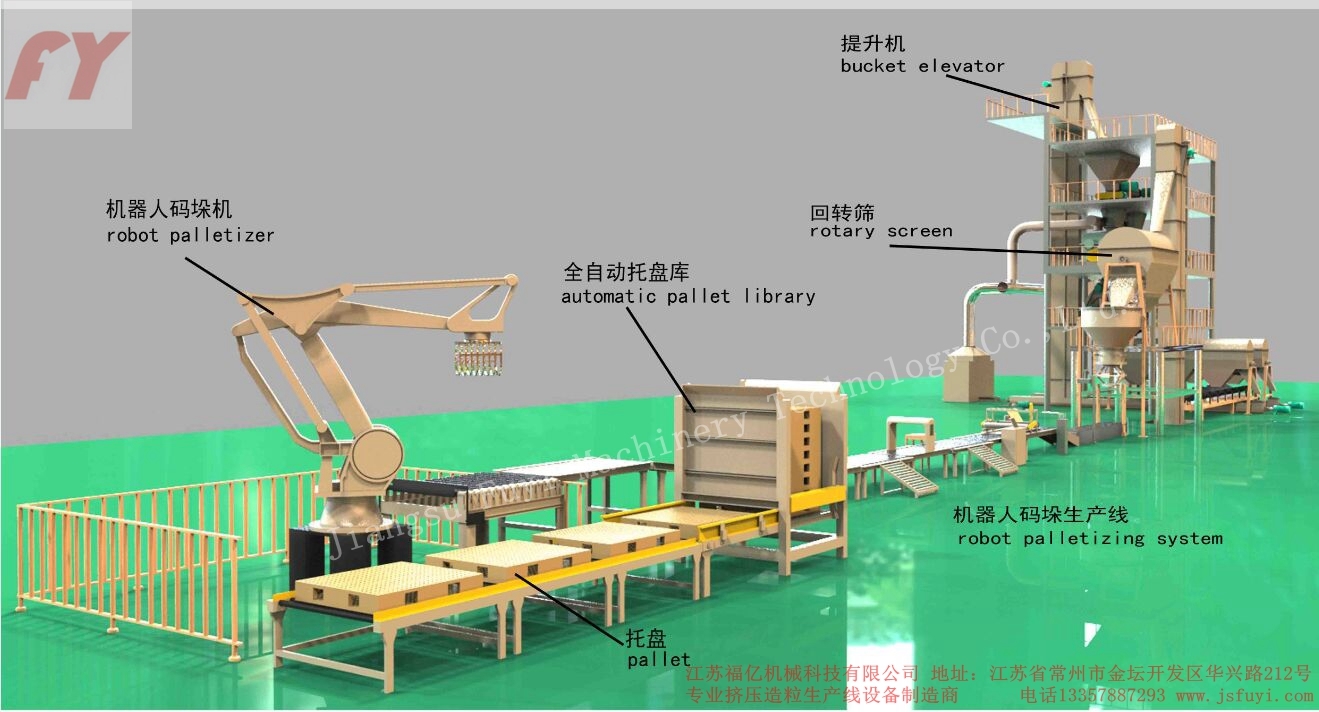

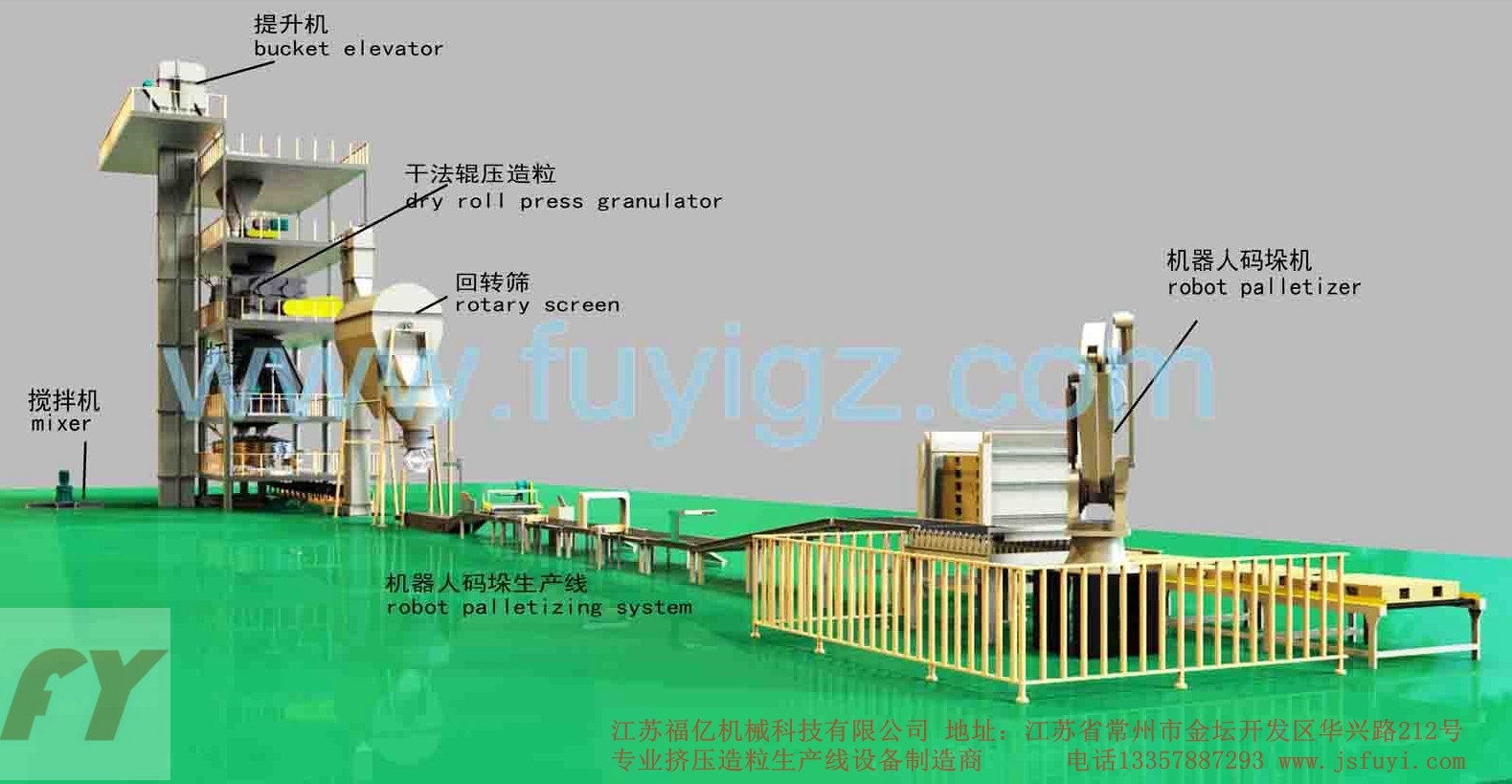

Automatic packing production line (robot palletizing machine)

Summary：

      Stacking machine is put into a container or material is through the packaging and not the packing of regular items, according to a certain arrangement stacked on pallets, automatic stacking, multi-layer stacking, then rolled, order to continue with the next packaging or forklifts to warehouse storage. Realizing intelligent operation and management can greatly reduce the labor force and reduce the labor intensity. Automatic bagging and palletizing equipment widely used in petrochemical, food, medicine, feed, food, non-ferrous minerals, building materials and other industries in the powder and granular materials, regular have a certain volume of goods automatic packing and automatic palletizing needs of industry.

Equipment composition

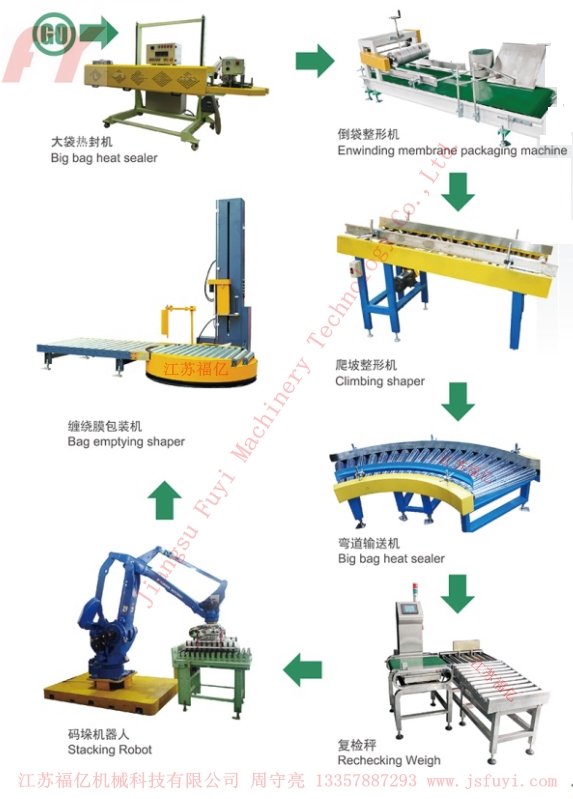

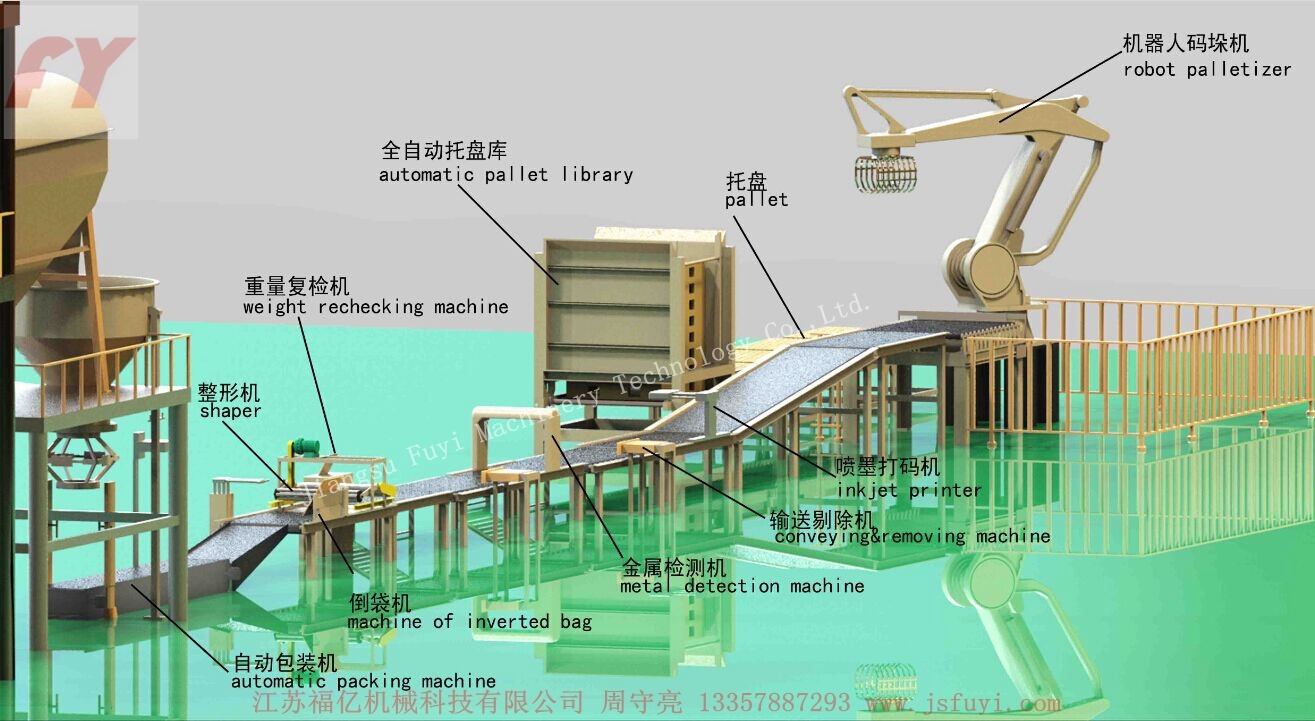

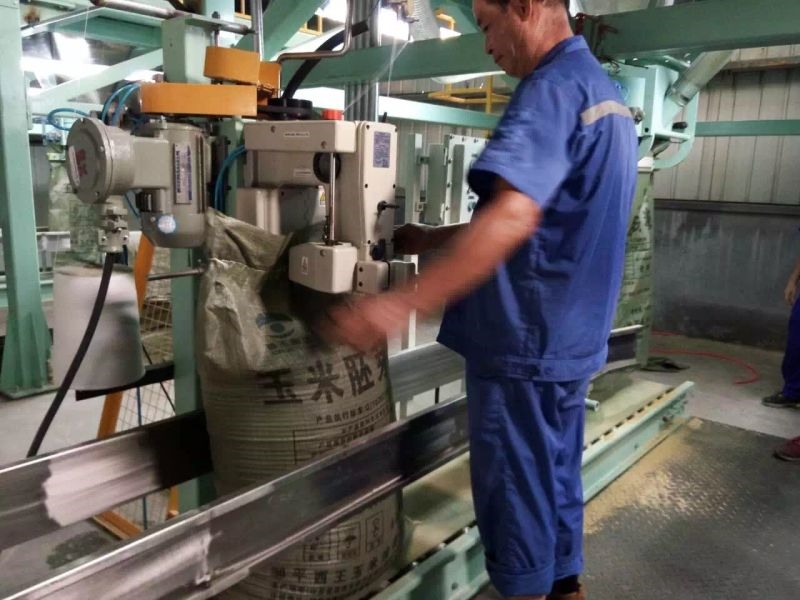

        Automatic weighing packing scale and bag clamping device. Flange sealing joint charter flights, inverted bag machine, plastic machine, metal detection machine, conveying removing machine, weight inspection machine, ink jet printer and related electrical equipment.

Product advantage：

According to the requirements of the packaging automation handling and palletizing machines can be automated packaging equipment and composition of automatic package stack stevedoring production line, can realize unmanned production, reduce production cost, improve production efficiency.

Main technical parameters

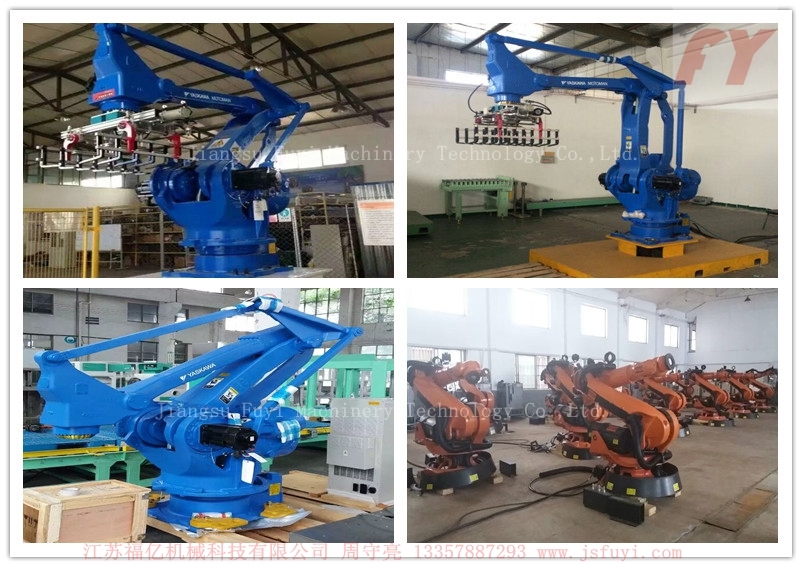

        The robot palletizing machine can neatly and automatically code (or dismantle) the pallets on a pallet (or production line). In order to make full use of the area of the tray and the stability of the pile material, the robot has the material stacking order and arrangement setter. From low speeds to high speeds, from bags to cartons, from stacking a product to stacking a variety of products. Applied to product handling, palletizing and so on, it is widely used in automobile, logistics, home appliances, medicine, food, beverage and other fields. Stacking manipulator capacity than ordinary mechanical stacking, manpower is higher. The structure is very simple, so the failure rate is low and easy to maintain and repair. The main components are few and the parts are few, so the maintenance costs are very low. The stacking manipulator can be arranged in a narrow space and can be used effectively. The whole control can be operated on the screen of the control cabinet. The operation is very simple and the versatility is strong.

Robot manipulator classification

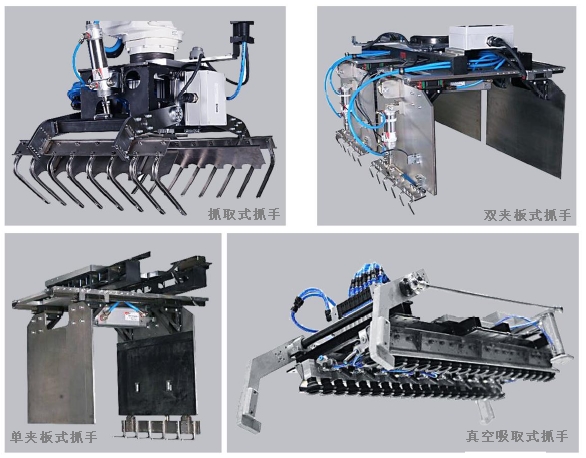

Robot gripper
Name	Gripper		Vacuum suction type gripper	Splint gripper
Classification	Single claw	Double claw		single plate	double plate
Maximum lift weight	50kg	50kg	40kg	40kg	60kg
Grip weight	50kg	110kg	75kg	45kg	80kg
Crawl count	1件	2件	1~5件	1件	1~5件
Movement mode	Electric			Pneumatic
Main application	Widely used in all kinds of soft bag packaging, stacking, such as bags of fertilizer, feed, grain, chemicals and so on.		Mainly used in the surface delicate, smooth, stable structure of solid products, such as instant noodles, cardboard boxes, beer boxes, etc..	Widely used in all kinds of soft bag packaging, stacking, such as bags of fertilizer, feed, grain, chemicals and so on.	With heavy single box or double box palletizing as the application target, it can be widely used in all kinds of box stacking, such as cartons。
Functional characteristics	High speed code bags, suitable for different sizes of bags, equipped with pressure bag mechanism, to prevent rejection package, equipped with a full set of pipelines, plug and play.		As many as 10 independent controllable vacuum areas, sensors can be used to detect whether the box is in position, the vacuum guide rail can be adjusted to adapt to different sizes of box, optional tray with gripping mechanism, equipped with a full set of pipelines, plug and play.	The lightweight design, simple structure, the hook mechanism to ensure that in the high-speed movement process hold the box, the clamping range is wide, suitable for different sizes of boxes, special size box box can be customized with a full set of pipeline, plug and play.

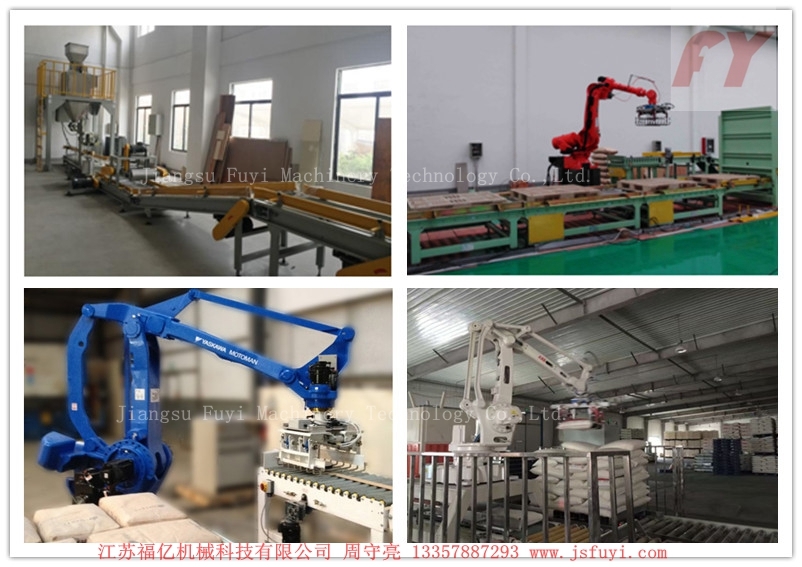

Fotos
