Product overview

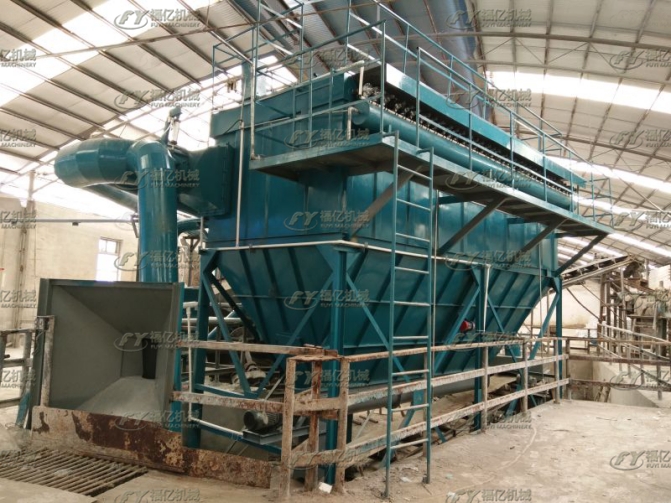

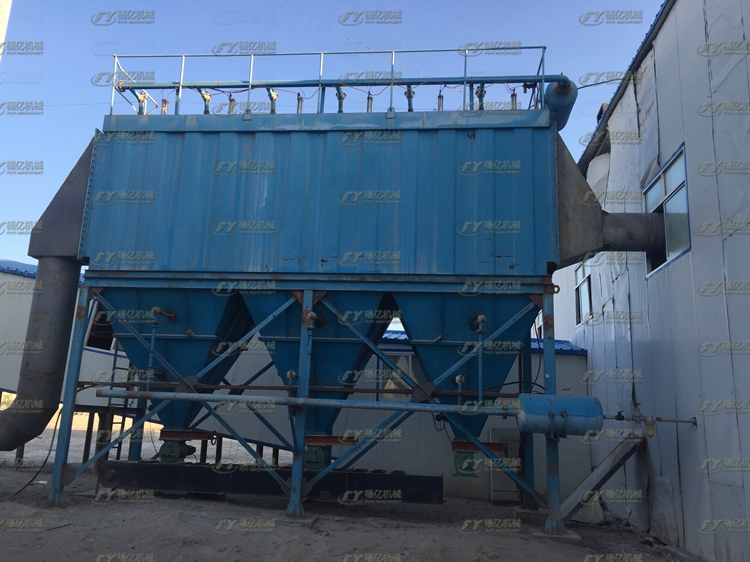

High pressure pulse bag dust collector is a kind of high efficiency dust collector which is used to collect fine dust, it is mainly used for the final collection of low concentration dust and fine dust.

Its working principle is to use waterproof and oil repellent to dust filter bag filter dust content in air, and the removal of oil to water sterilized compressed air, pulse electromagnetic valve regularly blowing, dust were collected after being shot down.It mainly includes the following parts:

Working principle

（1）、Cylinder: It consists of three parts  Upper cylinder, Medium cylinder and  Lower cylinder.

Medium cylinder is the main place for dust collection,which is used to install frame and bag.

Upper cylinder is actually a channel of clean air after filtering, gas storage bag, solenoid valve, nozzle installed here.Lower cylinder is a place to store materials, after hitting the powder is concentrated here.

（2）、framework, venturi tube, filter bag:

Compressed air the Scripture's tube after accelerated into the filter bag injection, skeleton is to prevent the bag after the aspiration of the draught fan filter area and reducing the main supporting bag.

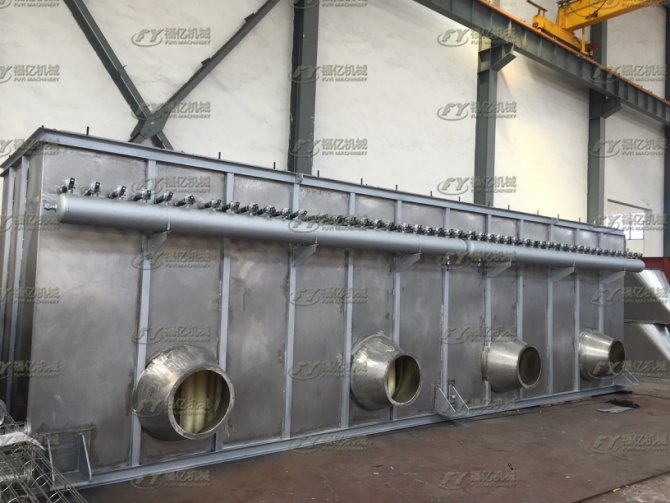

（3）、injection pipe、electromagnetic valve

Compressed air through the electromagnetic valve timing injection blow, in blowing against venturi nozzle with a plurality of 5mm hole, compressed air here enter venturi tube.

（4）、Pulse controller：

It controls the timing of the electromagnetic valve opening and closing, as well as the length of time and the interval of the switch, the two parameters can be adjusted by the knob on the pulse control instrument, in order to achieve the best effect of dust.

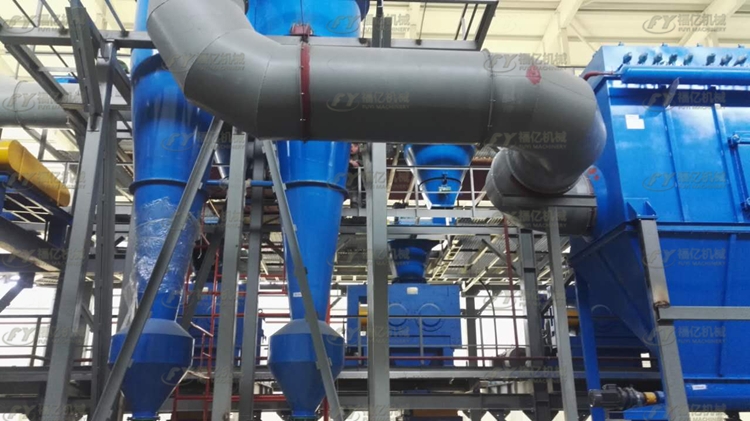

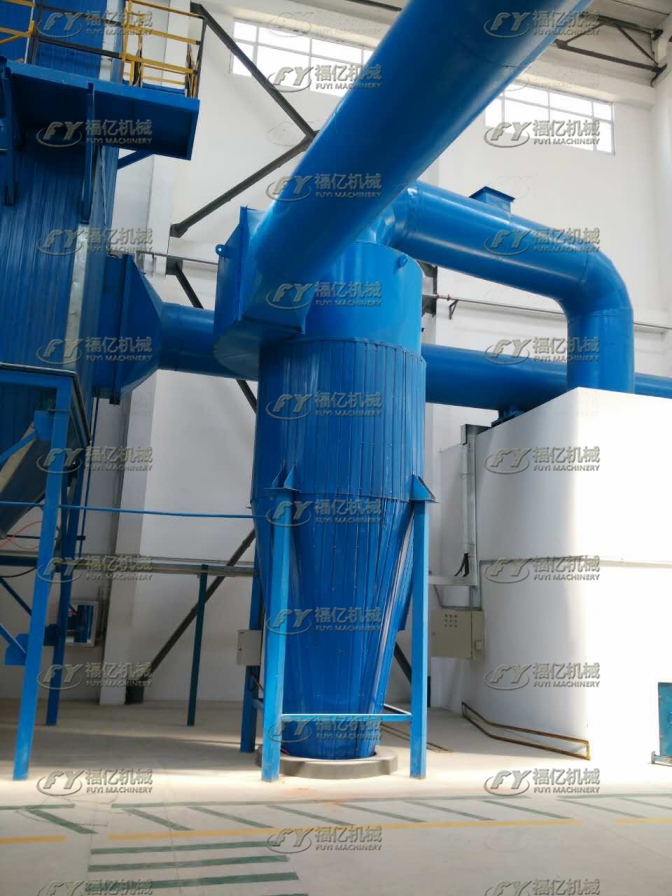

Cyclone dust collector

    It is a kind of dust collect device. In addition to sink mechanism is to make the dusty airflow for rotary motion, with centrifugal force dust particles from air separation and trap set in the wall, using gravity makes the dust particles into ash hopper.

Separation effect of cyclone separator:

In the design of pressure and gas conditions, can remove more than 10 m solid particles. In the operating point, the separation efficiency is 99%, in the operating point + 15% range, the separation efficiency is 97%.
