 Hyperflow Conveying System (high pressure low speed)

System overview

       Hyperflow Conveying System is mainly divided into two parts: The delivery tank (or silo pump) is basically transported and sent to tank for flow transportation, the tank can be fed by pressure, the delivery tank can be loaded fully, and the delivery tank can be delivered.

       The delivery system utilizes gas pressure higher than 0.3MPa, use positive pressure to squeeze material,cause it to flow through the pipe. Through the pipeline to the corresponding equipment. Therefore, it is often referred to as a high speed low speed system. It has high material gas m (usually gas to material ratio m=20~100, pressure p=0 to 0.7MPa, speed v=0.5~8m/s as high pressure low speed system).
       The initial speed of the system is about 0.3m/s of the starting speed, the pressure of the pipeline is generally 0.4MPa, and the speed at the end of the system is almost zero. The system uses air compressor unit as power source, its remarkable characteristic is low speed of transportation and less influence on material quality.
At present, the use of high voltage dense phase system is very extensive. At the same time, different conveying methods can be used for different conveying materials in order to maximize the service performance, efficiency and economic advantages.

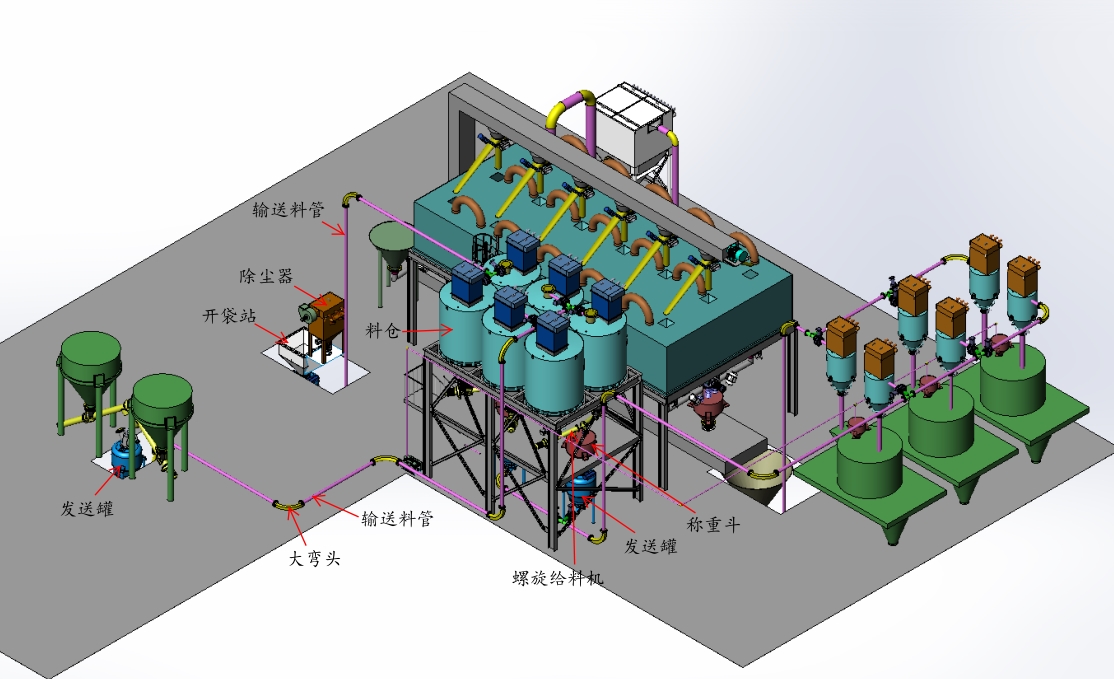

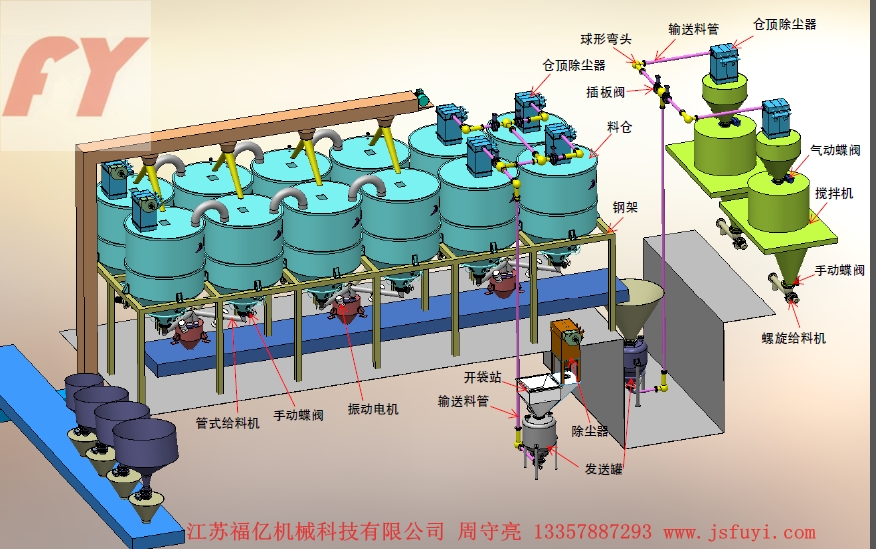

      The main components for the sending tank, turbocharger, separator, discharge valve, exhaust filter, air compressor, electric control cabinet etc.
