Summary

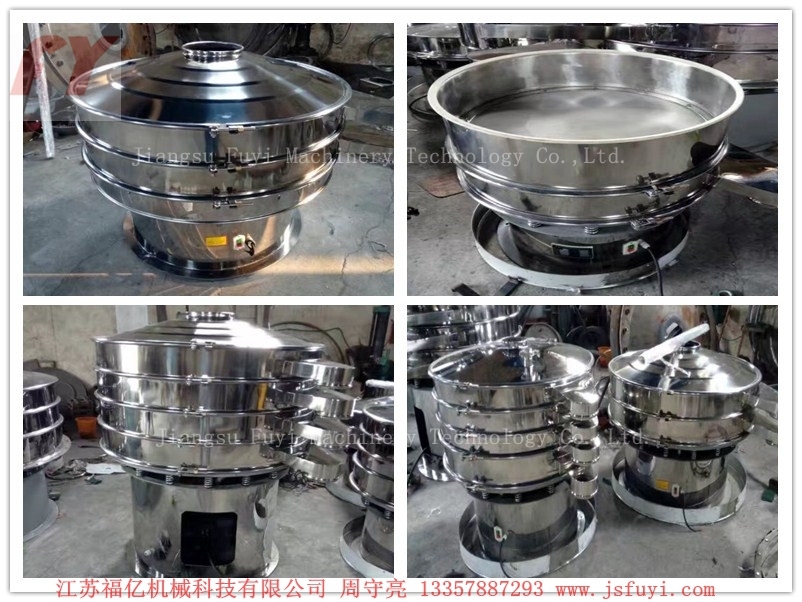

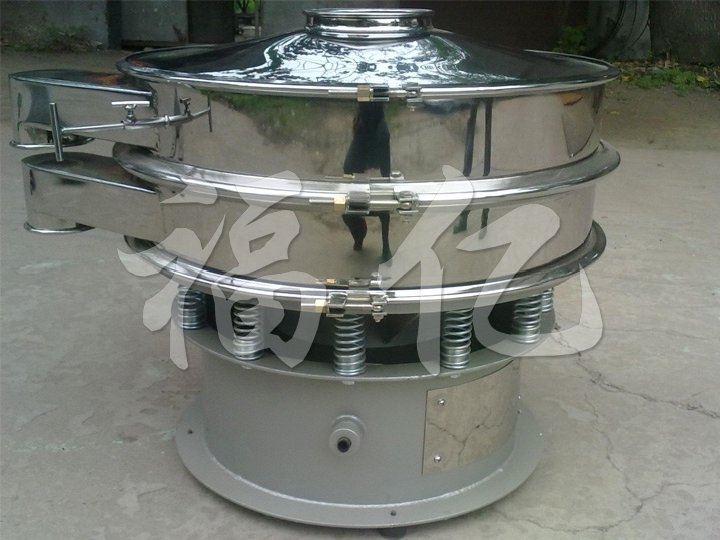

The machine is composed of a hopper, an oscillating chamber, a coupling and a motor. There are eccentric wheel, rubber software, main shaft, bearing and so on in the oscillating room. The adjustable eccentric weight is transmitted by the motor to the center line of the main shaft, and the centrifugal force is generated under the unbalanced condition, so that the strength of the material is changed, and the track vortex is formed in the sieve. The amplitude of the weight adjuster can be adjusted according to different materials and screen. The utility model has the advantages of compact structure, small volume, no dust, low noise, high quality, low energy consumption and convenient mobile maintenance.
Technical specifications
|
Model |
ZS-350 |
ZS-515 |
ZS-650 |
ZS-800 |
ZS-1000 |
ZS-1500 |
|
Capacity(kg/h) |
40-500 |
60-600 |
80-800 |
150-1200 |
300-2000 |
350-2800 |
|
Meshes |
12-1200 |
12-200 |
12-200 |
12-200 |
5-325 |
5-325 |
|
Motor power (kw) |
0.55 |
0.55 |
0.55 |
0.75 |
1.5 |
2.2 |
|
Main shaft speed (rpm) |
1380 |
1370 |
1370 |
1500 |
1500 |
1500 |
|
Overall dimension (mm) |
540×540×1060 |
710×710×1290 |
880×880×1350 |
1000×1000×1000 |
1100×1100×1200 |
1600×1600×1200 |
|
Weight (kg) |
100 |
180 |
250 |
300 |
350 |
400 |
