Details

Main features

1. The heat source can be steam, electricity, far infrared, or steam+electricity. Customer can select one of the heating ways in accordance with practical conditions;
2.The temperature of operation: 50 ~ 140 °C for steam, Maximum temperature will be 150 °C;
3.50 ~ 350 °C for electricity or far infrared;
4. There are automatic and computer control systems for customer selection;
5. The normal pressure of steam will be 0.02-0.8MPa (0.2-8kg/cm 2);
6. The equipped power of electric heater will be 15kw Calculated with Model I and the operational power to be used will be 5-8kw/hr;
7. for special requirement, please indicate it in order;
8. The price of non-standard oven shall be discussed additionally;
9. If the operation temperature is more than 140 °C or less than 60 °C, please indicate it in order;
10. The size of drying trolley and tray is standardized. They can be exchanged each other;
11 The size of drying tray: 460 ×640×45(mm).

Characteristics

Most hot air is circulated in the oven. The Heat efficiency is high and the energy is saved. By using the forced ventilation function, there are adjustable air distribution plates inside the oven. The materials can be dried uniformly. The heating source might be steam, hot water, electricity and far infrared. With a widely selection. The whole machine is low in the noise. The operation is in balance. The temperature is controlled automatically. The installation and maintenance are easy. The application is wide. The machine can be used for drying various materials and is general drying equipment.

Material to be dried

GMP Drying Oven / Medicine Powder Drying Oven is suitable for the material and product hot solidication and dry de-watering in the pharmaceutical, chemical, food, farming, side-product, aquatic product, light industries, heavy industries and others industries. Such as: raw material medicine, crude drug, prepared herbal medicine of Chinese traditional medicine, plaster , powder, particle, drinking agent, pill, packing bottle, pigment, dyestuff, de-watering vegetable, dried fruit piece, sausage, plastics, resin, electric component, baking varnish and etc.

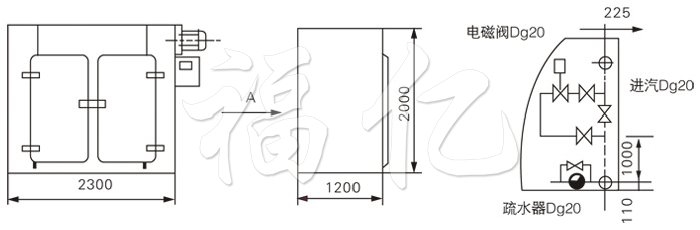

Schematic drawing
